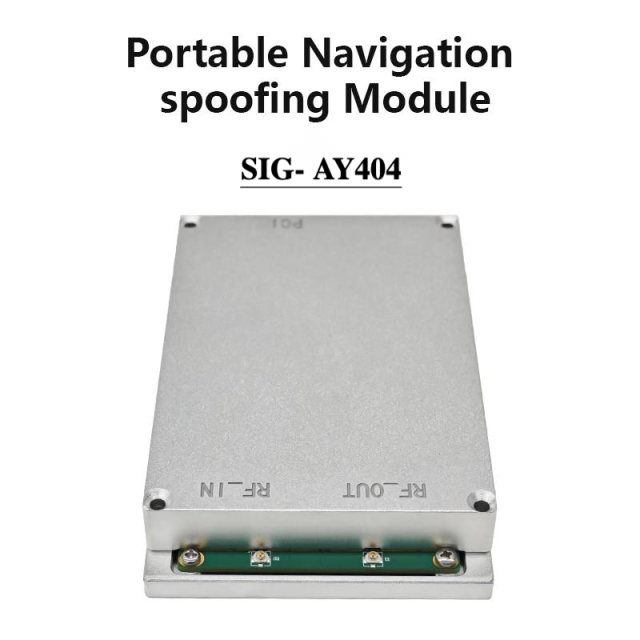

1.Product Overview

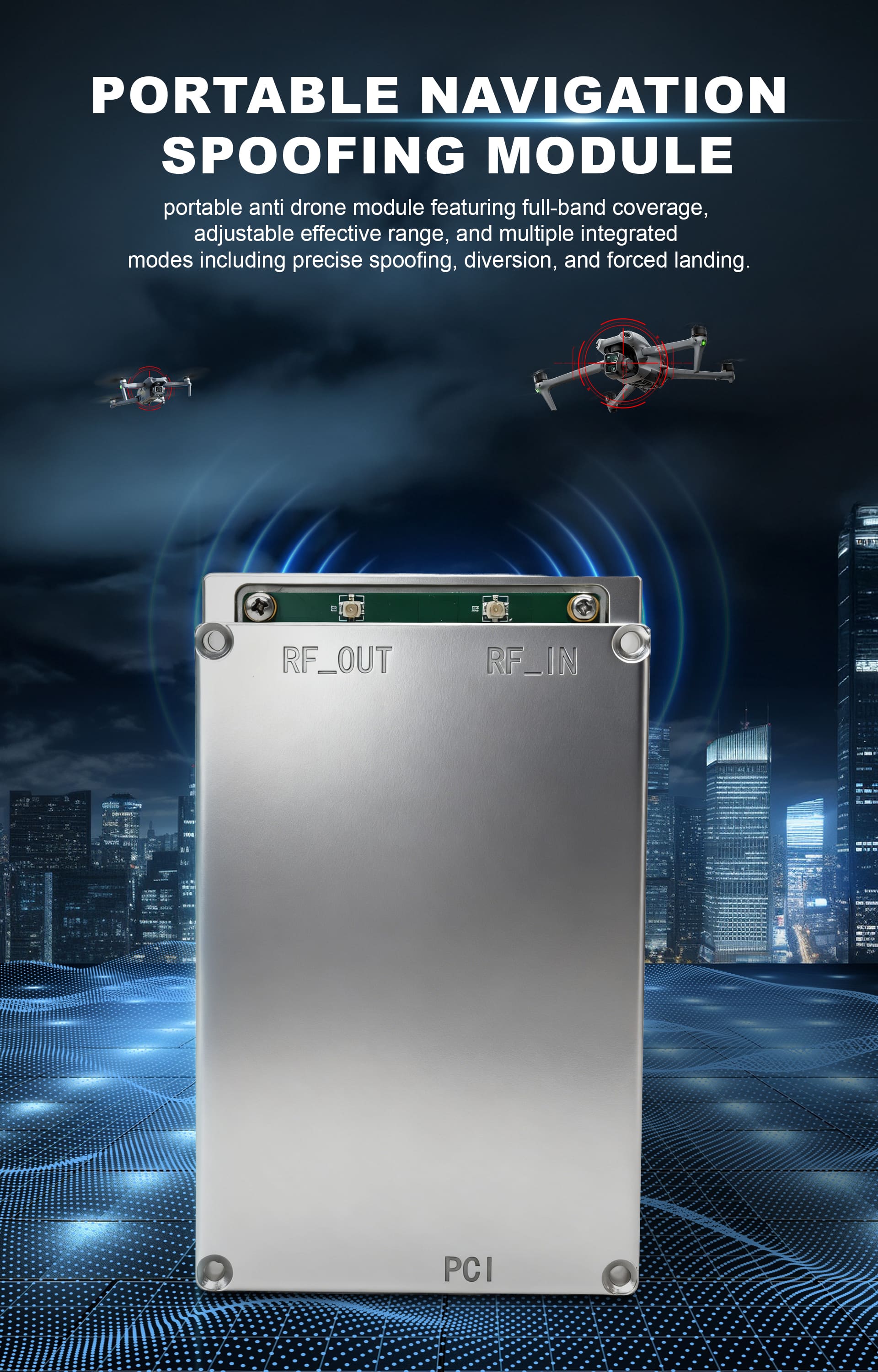

The portable navigation spoofing module is designed for counter-UAS applications in fields such as petroleum and petrochemicals, electric power, law enforcement, and the defense industry. The product features a compact and lightweight design, easy operation, and reliable performance, making it convenient for rapid user integration.

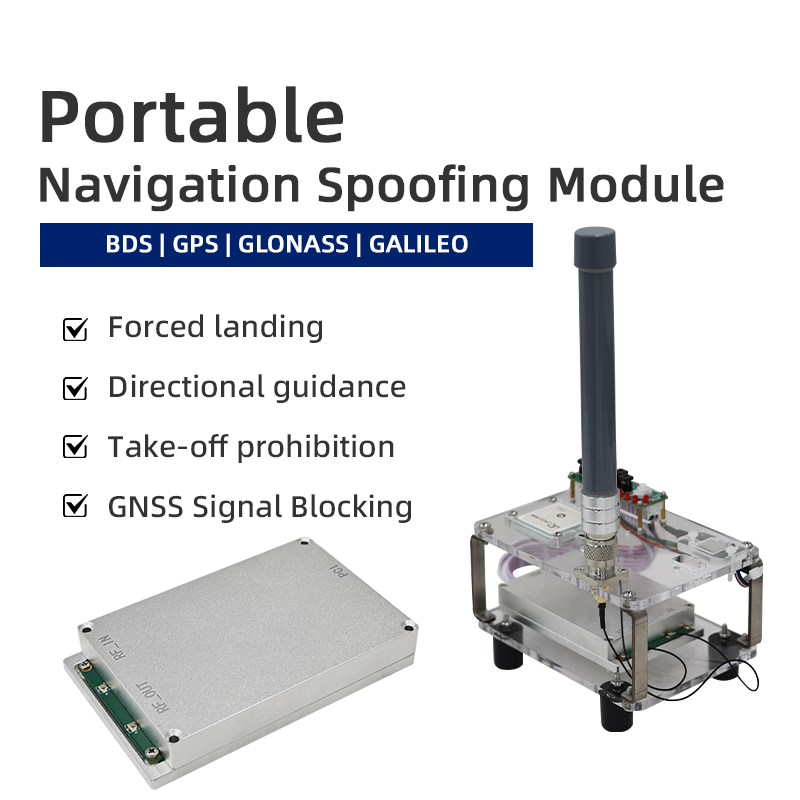

2.Main Functions
● Supports reception and simulated transmission of common signal frequencies from the world’s four major navigation satellite systems.

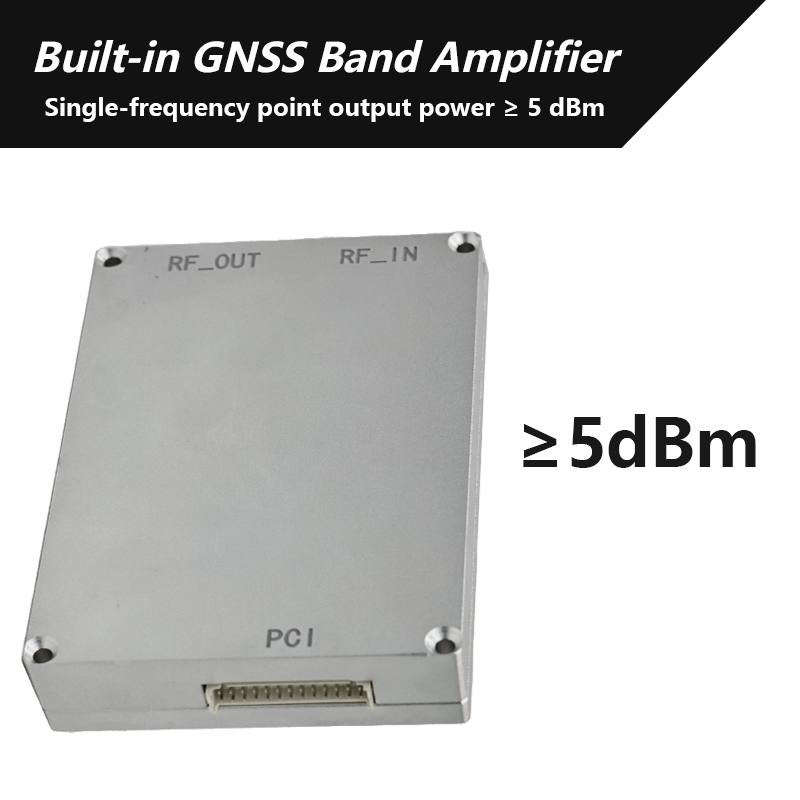

● Built-in GNSS band amplifier with single-frequency output power ≥ 5 dBm.
● Synchronizes with on-orbit satellite time and ephemeris, and automaticall y blocks co-frequency interference.
● Capable of spoofing UAVs dependent on satellite navigation systems, enabling forced landing, directional guidance, take-off prohibition, and GNSS interference.
● Supports external buttons and command control for functional modes including:signal ON/OFF, GNSS interference, heading guidance (expulsion), no-fly zone, circular motion, and crash mode.
● Supports an external direction-finding module to determine UAV orientation and to guide the target
● Supports external indicator lights showing the module’s operating status.
3.Technical Specifications

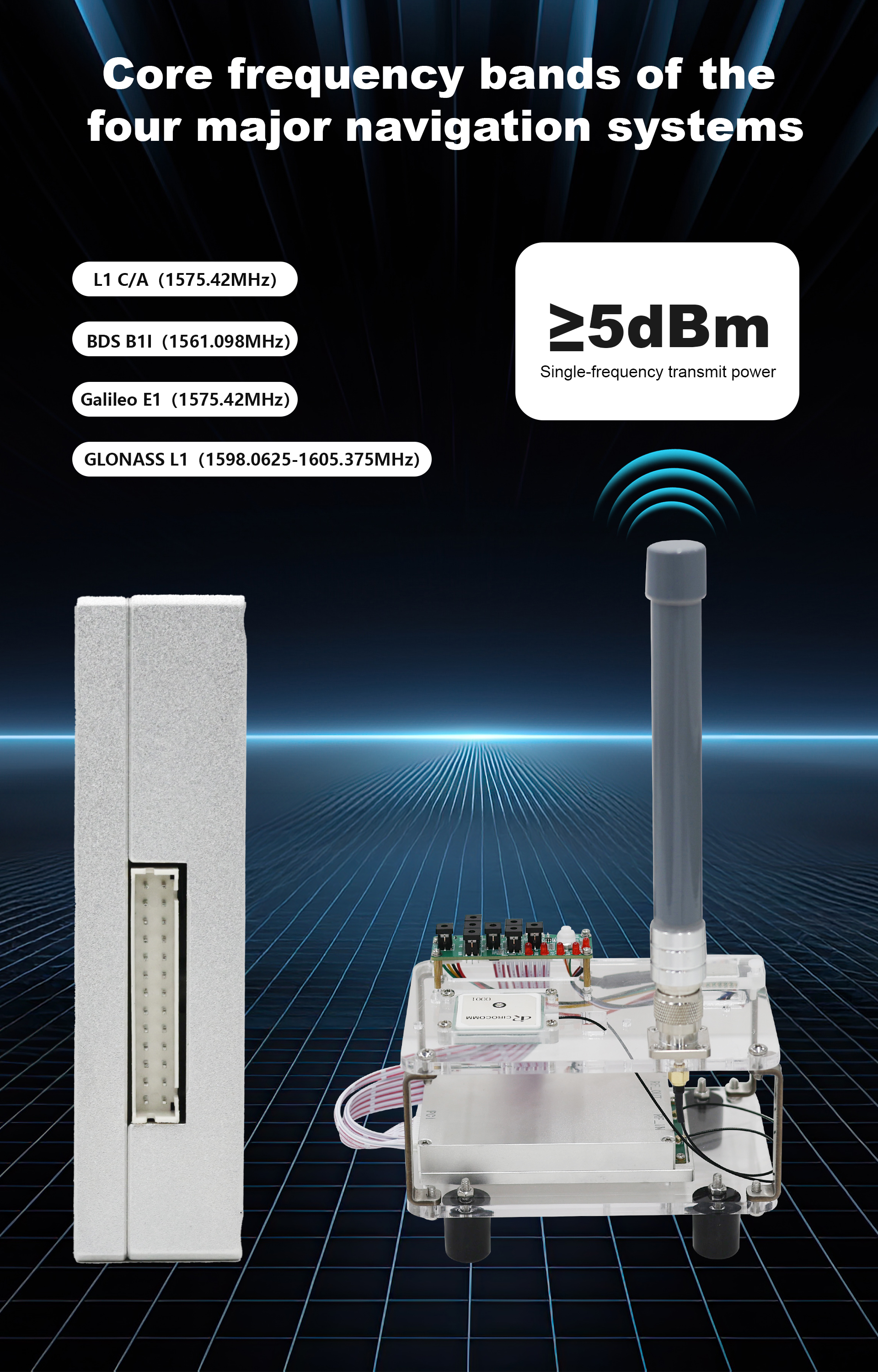

● Supports simulation of GPS, BDS, GLONASS, and Galileo navigation satellite signals. Details of frequency points, power, and channels are as follows:
| Signal Output Index | ||||
| NO. | Satellite System | Frequency Band | Center Frequency（MHz） | Max Transmission Power |
| 1 | BDS | B1I | 1561.098 | ≥5dBm |
| 2 | GPS | L1 C/A | 1575.42 | ≥5dBm |
| 3 | GLONASS | L1 | 1598.0625-1605.375 | ≥5dBm |
| 4 | GALILEO | E1 | 1575.42 | ≥5dBm |

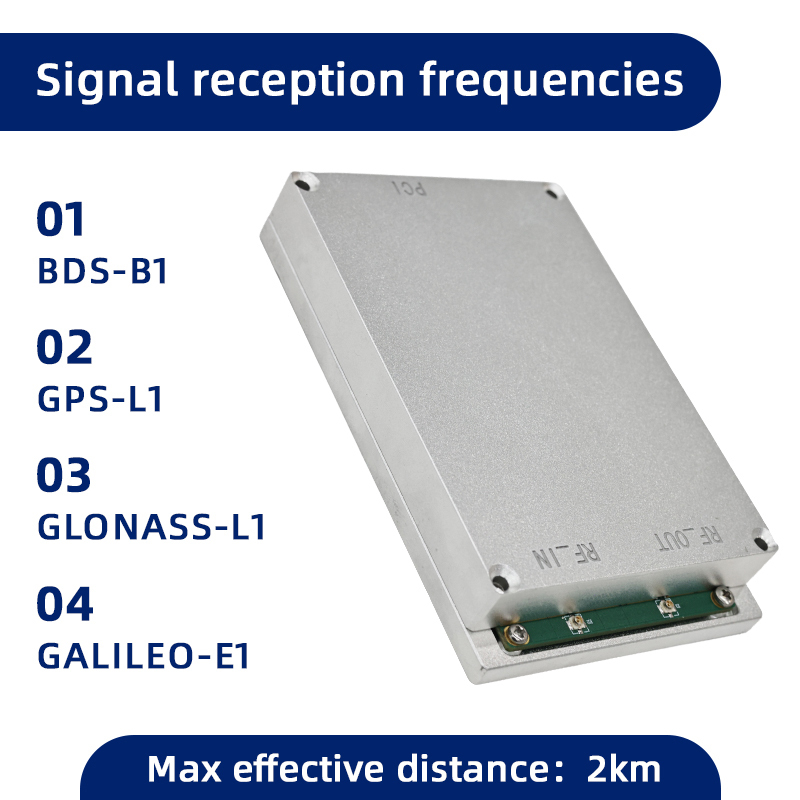

● Navigation signal reception frequencies ： BDS-B1 、 GPS-L1 、 GLONASS-L1 、 Galileo-E1；
● Power adjustment range：80dB.

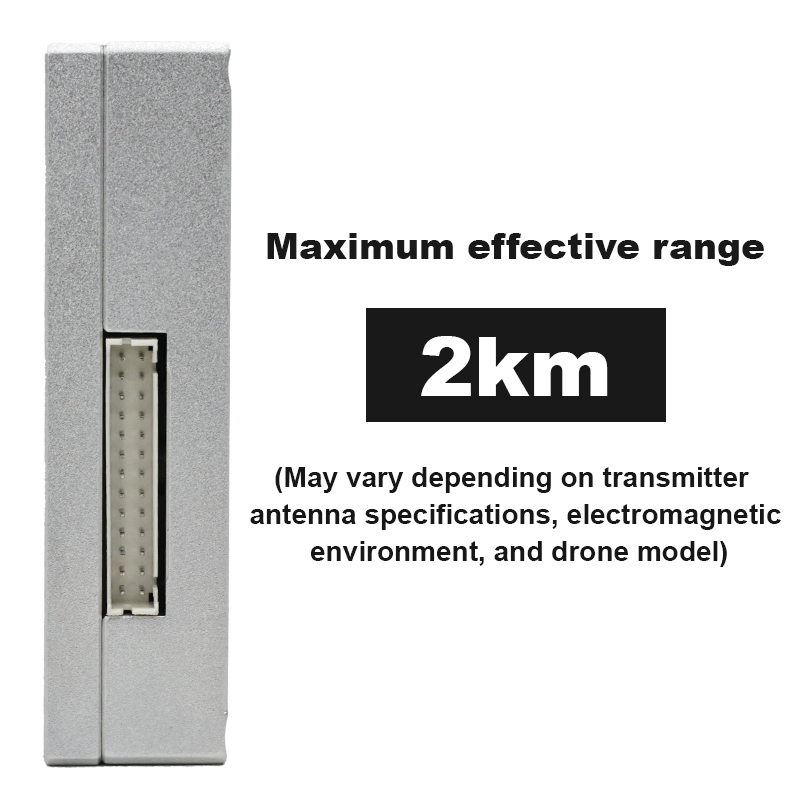

● Max effective distance：2km（Depending on environment and UAV model）.
● Startup time：30s.
● Satellite signal synchronization time：150s.
● Continuous operating time：≥24h.

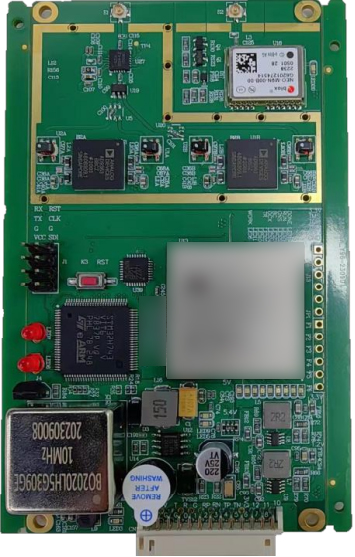

4.Interface Definition
Product interface functions and definitions are as follows:： The interface functions and definitions of the portable navigation deception module are as follows:

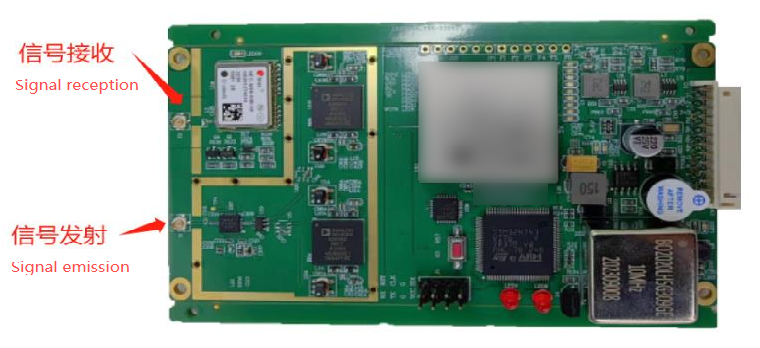

● Signal reception port: SMA — receives GNSS signals
● Signal transmission port: SMA — transmits spoofing signals
● Power and control interface: HC-PHD-2×13AW, including: power input, direction-finding module interface, external functional button interface, external indicator light interface, interface, network port.
5.Function Definitions
The portable navigation spoofing module uses external buttons or command control to switch working states and functional modes.
| Function Button Definitions | ||
|---|---|---|
| NO. | Function | Function Description |
| 1 | Signal transmission & mode switch | When the transmit button is pressed, and without pressing the function-mode button, the device transmits a GNSS suppression jamming signal. When the function-mode button is pressed, it transmits a GNSS spoofing signal corresponding to the selected mode. GNSS Signal Suppression Jamming Function: Based on GNSS signal-simulation technology, the system provides an intelligent jamming capability that enables low-power, long-range suppression of satellite-navigation signals. |
| 2 | Crash mode | Forces the target UAV to crash toward the ground in a specified direction. |
| 3 | Heading guidance (forward) | The module connects to an external direction-finding unit to determine its own orientation. Guides the target drone to fly forward away from the user. |
| 4 | Heading guidance (backward) | Guides the target drone to fly backward away from the user. |
| 5 | Heading guidance (left) | Guides the target drone to fly left away from the user. |
| 6 | Heading guidance (right) | Guides the target drone to fly right away from the user. |
| 7 | Circular motion | Induces the UAV to perform circular flight in the air. |
| 8 | No-fly zone | Spoofs the UAV position into a no-fly zone, causing forced landing or preventing take-off. |
6.Indicator Light Functions
Portable navigation deception module, with external indicator lights defined as follows:
| Definition of Indicator Light | ||||
|---|---|---|---|---|
| NO. | Function | Off | Flashing | Solid |
| 1 | Operating status | Power off | Power on, initializing | Initialization complete |
| 2 | Signal transmission status | Signal OFF | Jamming signal transmitting | Spoofing signal transmitting |
| 3 | Signal reception status | No satellite signal or signal reception disabled | Normal satellite reception.
|
Locked with sufficient ephemeris, ready for optimal transmission |
| 4 | Alarm | Normal | Slow flash: receiving antenna was not detected.
|
|
7.Environmental Adaptability
● Operating temperaturee：-30℃～+70℃，compliant with GJB1621.7A-2006 standard.
● Storage temperature：-40℃～+80℃，compliant with GJB1621.7A-2006 standard.

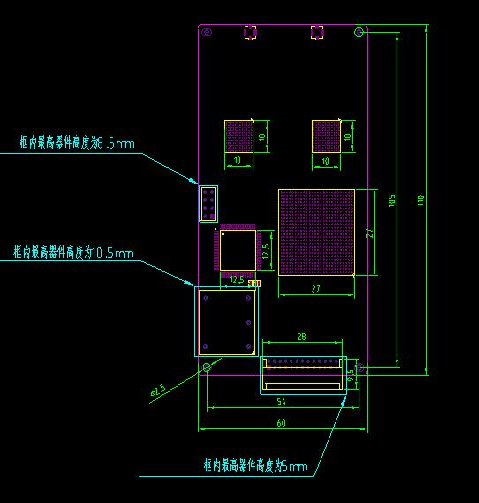

8.Appearance & Dimensions
 |
 |

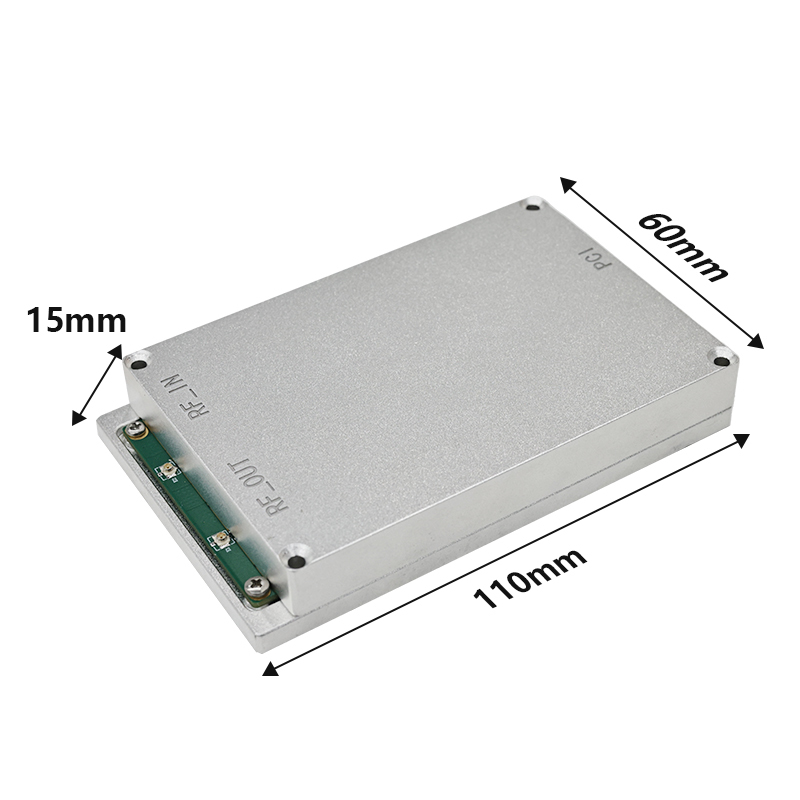

External dimensions (L × W × H): 110 x 60 x 15mm
9.Electrical Characteristics
● Input voltage：DC 9~18V
● Power consumption: Standby status≤5 W, Max power transmission status≤9 W (maximum transmission)

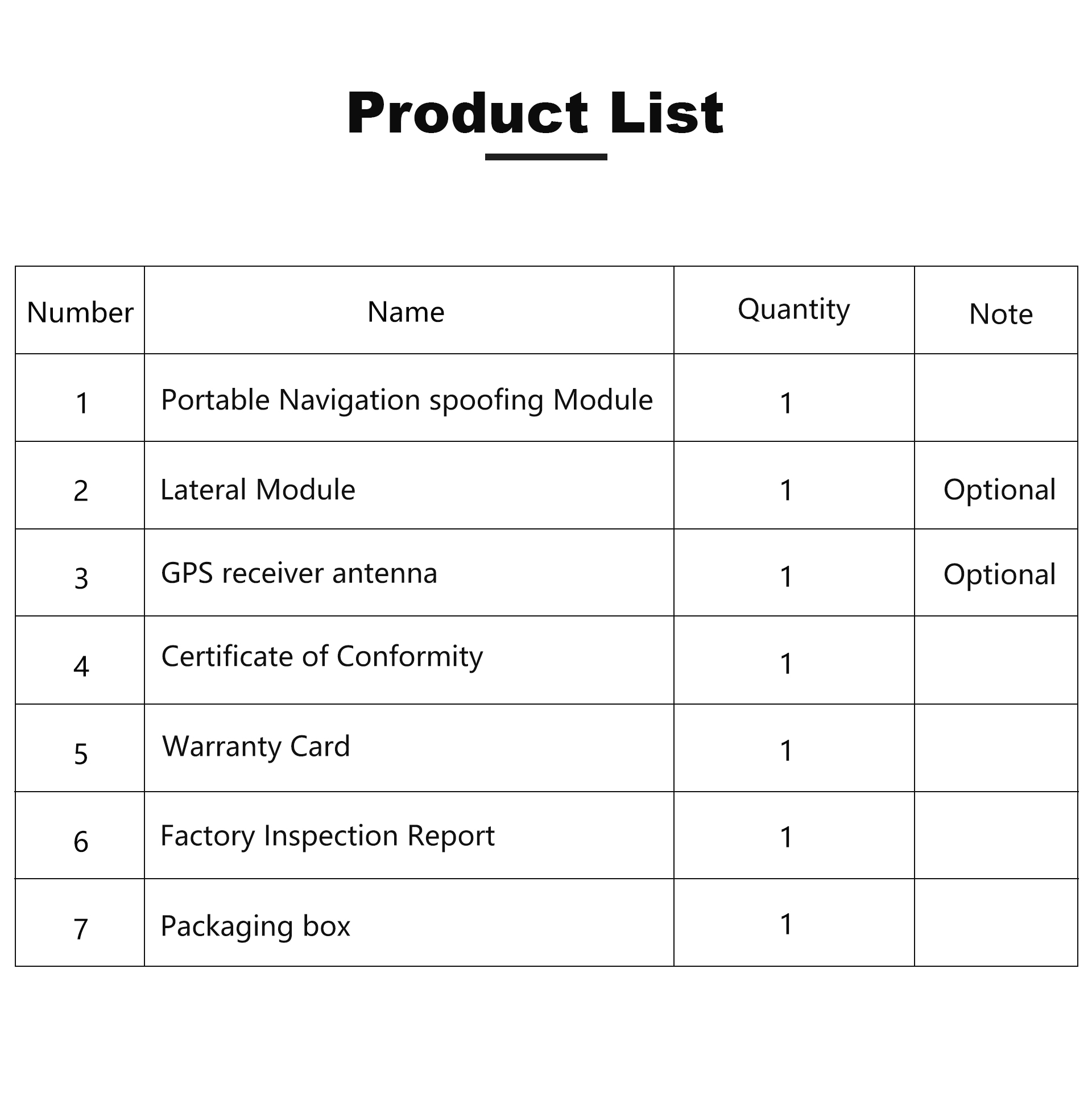

Factory Configuration
| NO. | Item | Qty | Remark |
|---|---|---|---|
| 1 | Portable navigation spoofing module | 1 | |
| 2 | Direction-finding module | 1 | Optional |
| 3 | GNSS receiving antenna | 1 | Optional |
| 4 | Certificate of conformity | 1 | |
| 5 | Warranty card | 1 | |
| 6 | Factory inspection report | 1 | |
| 7 | Packaging box | 1 |
| Parameter | Value |
|---|---|
| Navigation signal reception | BDS-B1, GPS-L1, GLONASS-L1, Galileo-E1 |
| BDS | B1I · 1561.098 MHz · ≥ 5 dBm |
| GPS | L1 C/A · 1575.42 MHz · ≥ 5 dBm |
| GLONASS | L1 · 1598.0625–1605.375 MHz · ≥ 5 dBm |
| Galileo | E1 · 1575.42 MHz · ≥ 5 dBm |
| Power adjustment range | 80 dB |
| Maximum effective distance | Up to 2 km (depends on environment and UAV model) |
| Startup / satellite signal synchronization time | 30 s / 150 s |
| Continuous operating time | ≥ 24 h |
| Dimensions (L × W × H) | 110 × 60 × 15 mm |
| Input voltage | DC 9–18 V |
| Power consumption | ≤ 5 W standby; ≤ 9 W at maximum transmission |
| Operating / storage temperature | −30 °C to +70 °C / −40 °C to +80 °C, compliant with GJB1621.7A-2006 |

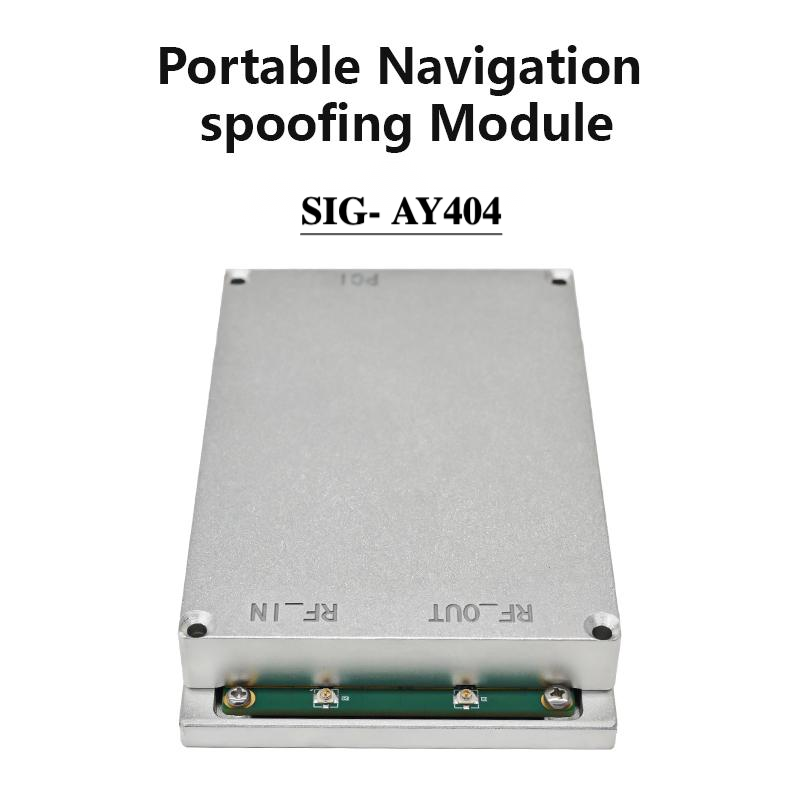

The anti drone module brings its connections out to standard hardware. One SMA port receives the GNSS signal from the antenna, and a second SMA port transmits the spoofing signal. Power and control run through an HC-PHD-2×13AW connector that also carries the direction-finding module interface, the external function button and indicator light lines, and a network port.
Four indicator outputs tell the operator what is happening without opening the housing: operating status (power off, initializing, initialization complete), transmission status (signal off, jamming signal transmitting, spoofing signal transmitting), reception status (no signal, tracking, or locked with sufficient ephemeris) and an alarm that flashes if the receiving antenna or the direction-finding module is missing. Inside, the electronics sit in a flat metal enclosure with a screw-fastened lid and corner mounting holes, so the unit can be fixed to a bracket or inside a control box rather than needing a rack of its own.
| Item | Qty | Supply |
|---|---|---|
| Portable navigation spoofing module | 1 | Standard, main unit |
| GNSS receiving antenna | 1 | Optional, added when specified on the order |
| Direction-finding module | 1 | Optional, added when specified on the order |
| Certificate of conformity | 1 | Standard, issued for each unit |
| Warranty card | 1 | Standard, one card per unit |
| Quality inspection report | 1 | Standard, one report per unit |
| Packaging box | 1 | Standard, sized for the packed set |
| Outer shipping carton | 1 | Standard, carton-packed for dispatch |
It handles all four major navigation satellite systems: BDS-B1, GPS-L1, GLONASS-L1 and Galileo-E1. A built-in GNSS band amplifier sits in the transmit chain, so both the reception side and the simulated output are managed inside the one enclosure.
The maximum effective distance is about 2 km, and in practice it depends on the electromagnetic environment, the transmitting antenna used and the drone model being targeted. Power output can be adjusted across a wide range, so operators can tighten or extend that footprint to suit a confined site or an open perimeter.
Pressing the transmit button alone turns the module into a portable signal jammer: it suppresses satellite navigation reception over a low-power, long-range footprint. Pressing it together with a function-mode button instead transmits a spoofing signal matched to that mode, so the drone's receiver is fed a false but internally consistent position.
After power-up the module starts in about 30 seconds, and roughly 150 seconds should be allowed for it to synchronize with on-orbit satellite time and ephemeris before transmission begins. The external indicator lights confirm when reception is locked and the module is ready.
Continuous operating time is at least 24 hours. Standby draw is 5 W or less and rises to no more than 9 W while transmitting at maximum power, so the unit can sit ready without a heavy load on the site's supply.
Operating temperature spans −30 °C to +70 °C, and the module can be stored from −40 °C to +80 °C, both compliant with the GJB1621.7A-2006 standard. That suits outdoor cabinets and unheated shelters in most climates, and the unit can be carried between positions when needed.
