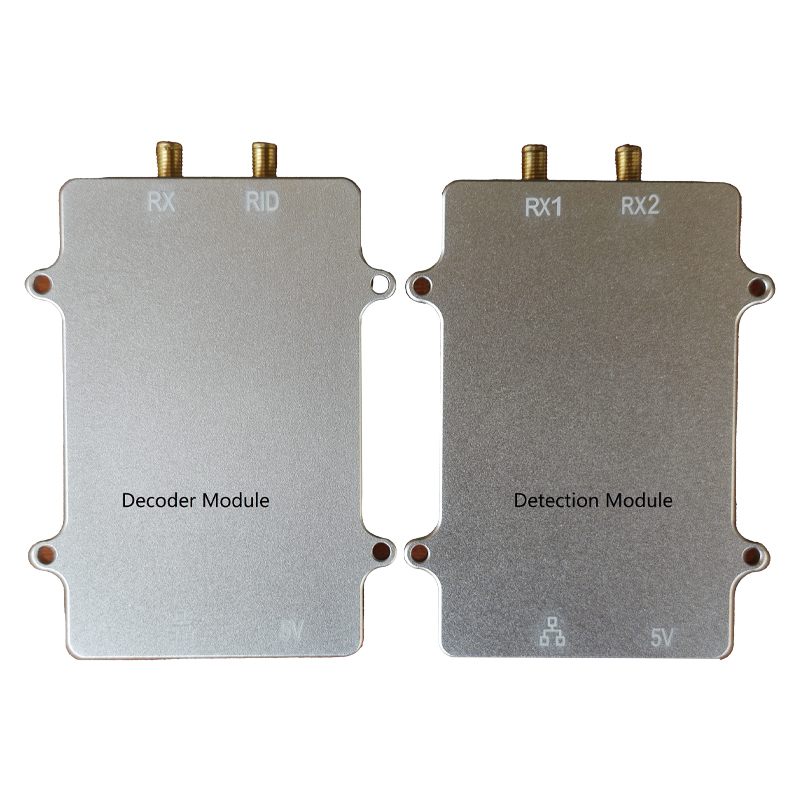

This All-in-One Drone Detection & Decoding Module is designed for counter-UAS systems and UAV surveillance applications, combining wideband RF detection, signal classification, direction finding, and protocol-level decoding in a compact hardware module.
The solution supports DJI, Autel, FPV drones, and various UAV communication technologies, providing early warning and identity-level intelligence for security and defense scenarios.
| Drone Detection Module | |
| Frequency Range | 70MHz ~ 6000MHz |
| Detection range | 1–10 km (environment dependent) |
| Supported signals | DJI, Autel, Lightbridge, enhanced WiFi, Analog FPV, LoRa, modified LTE, UAV datalink |
| Direction finding | GPIO-controlled 8 / 16 antenna |
| Output | detection result + real-time spectrum (FFT) |
| Interface | UDP / TCP / TTL (3.3V, 115200) |
| Power | 5V, 3.3W |
| Operating Current | ≤0.5A (@12.0V) |

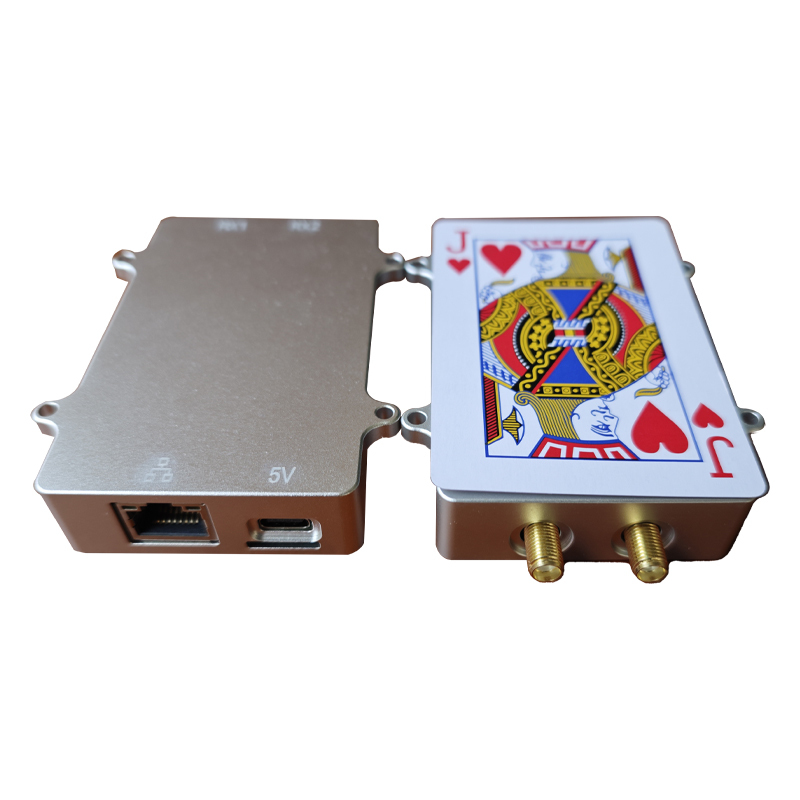

| Size | 89 × 55 × 18 mm |
