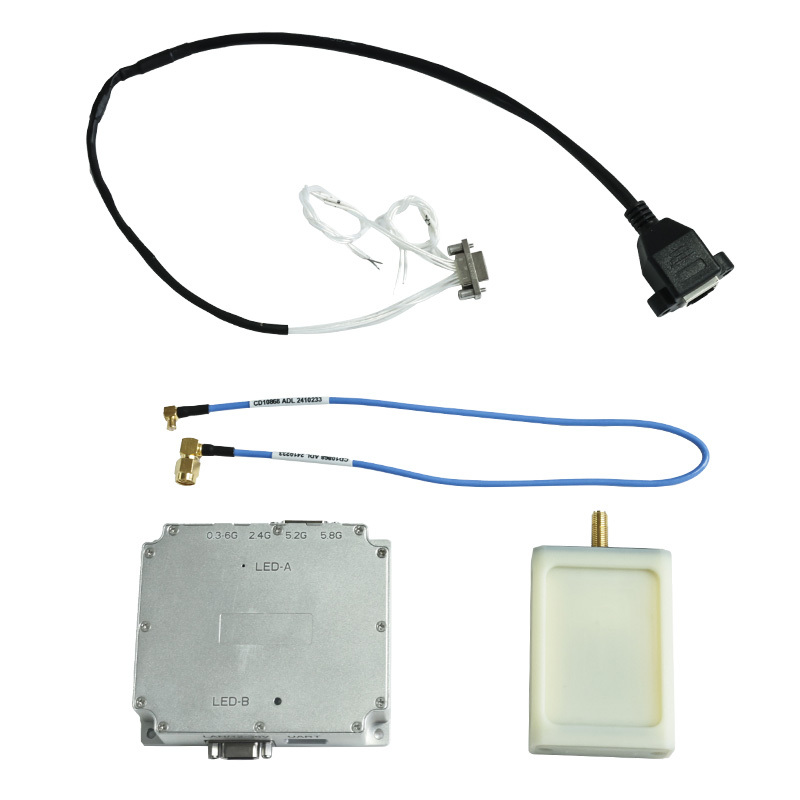

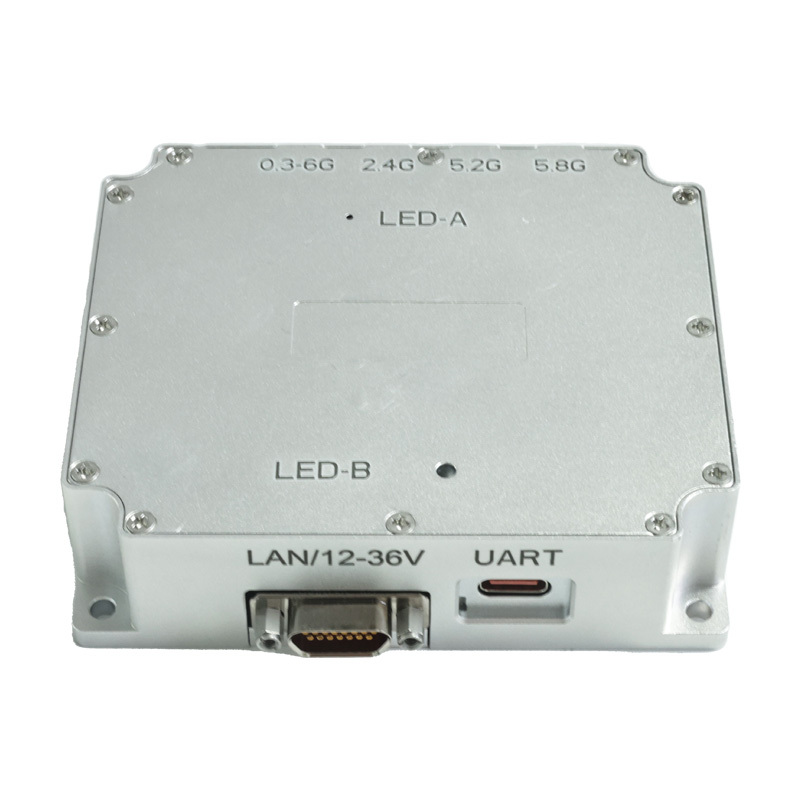

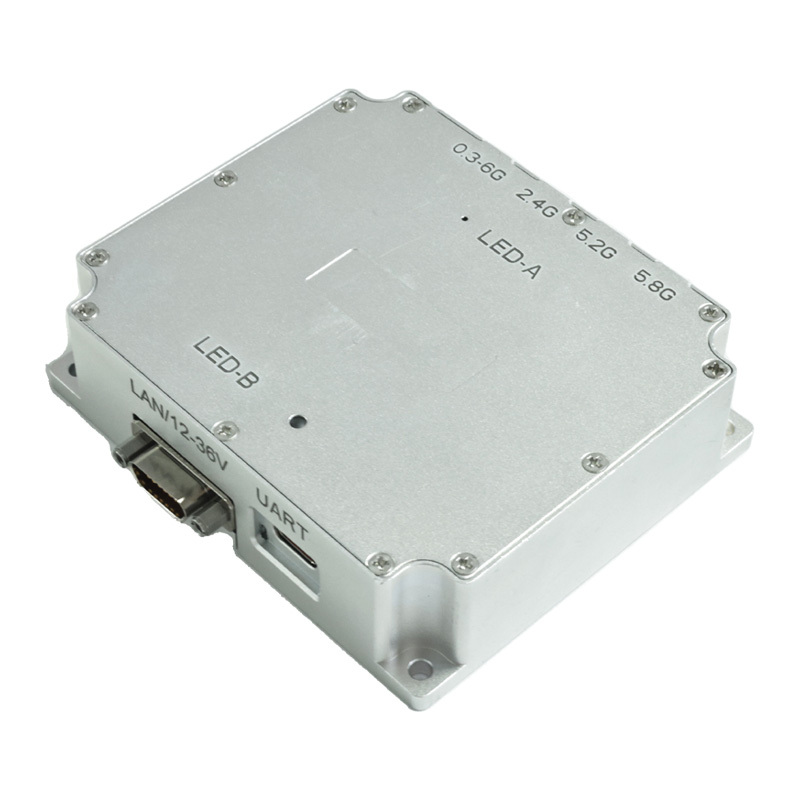

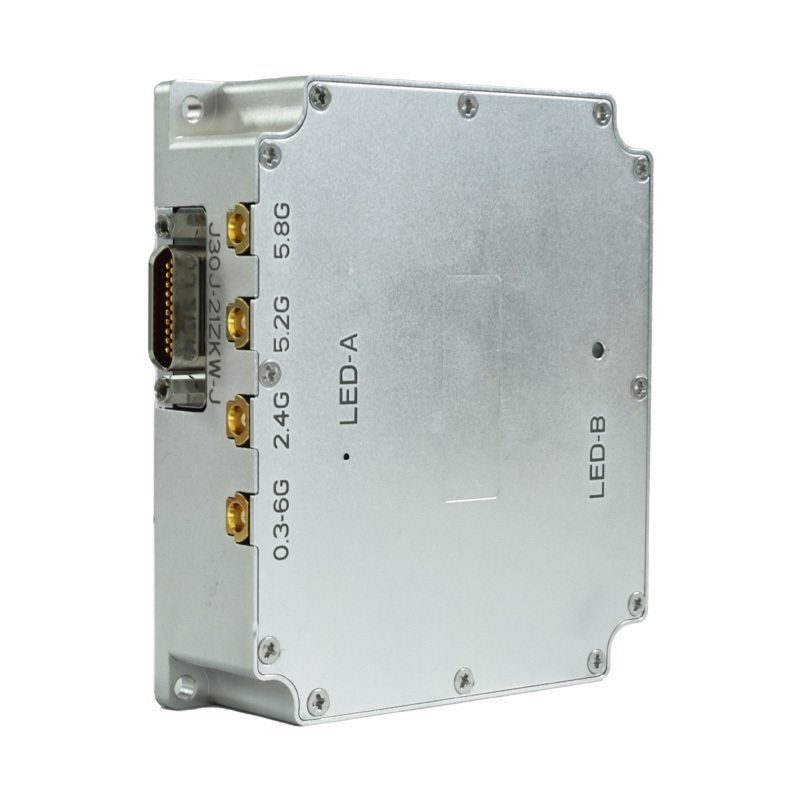

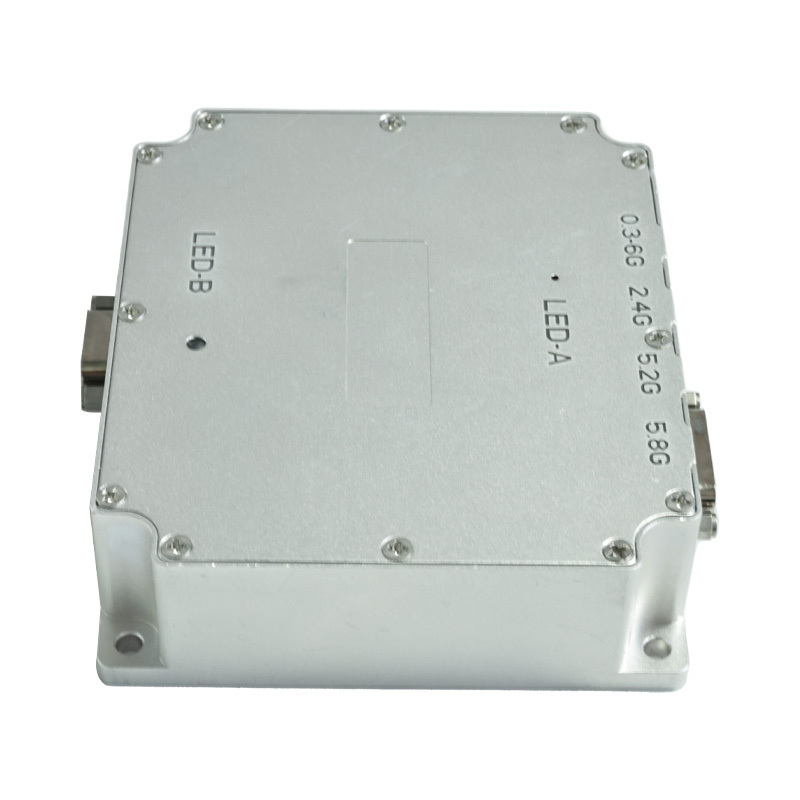

The FPV detection and control integrated board is small in size, light in weight, and adopts a low-power design. The module extracts key signal features from the FPV analog image transmission signal through radio signal detection technology, and uses spectrum feature recognition technology to compare with the spectrum feature library to achieve accurate identification of FPV drones. The board is equipped with a power amplifier module to achieve accurate countermeasure with the FPV drone analog image transmission, causing the FPV glasses worn by the operator to lose the image screen, thereby achieving the effect of detecting and interfering with the FPV drones.
2) It can accurately strike FPV drone simulated image transmission by matching with power amplifier module.
Main functions:
|
ITEM |
SPECIFICATION |
|
Working frequency band: |
Support 300MHz-6GHz; can cover key frequency bands: 430~435MHz, 840MHz~845MHz, 902~928MHz, 1430~1444MHz, 2400~2484MHz, |
|
Detection distance: |
Omnidirectional: ≥3km (depending on the environment and model, there are certain differences, matching the standard antenna). |
|
Recognition accuracy: |
Drone recognition: ≥95%, (test method: drone models in the drone hangar are within 100 meters; multiple sorties, generally 3-4 |
|
Reconnaissance and identification response time: |
≤2S (from drone on to detection). |
|
Supported model library: |
Can identify mainstream models and support model library upgrades. |
|
Power supply: |
DC 12-36V. |
|
Power: |
≤10W |
|
Indicator light: |
power light, status light |
|
Usage |
Anti Drone Systems |
