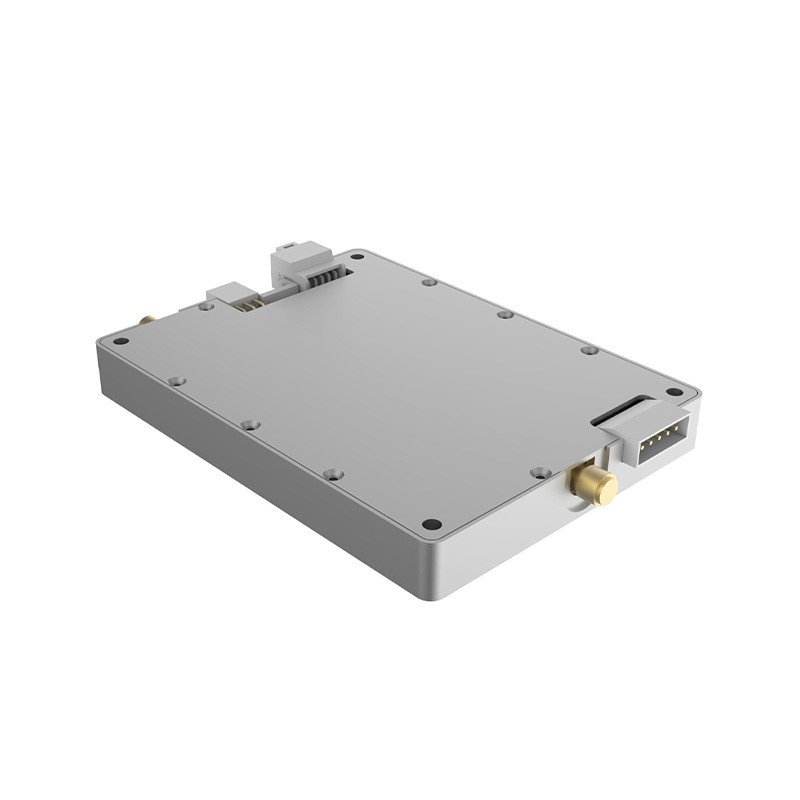

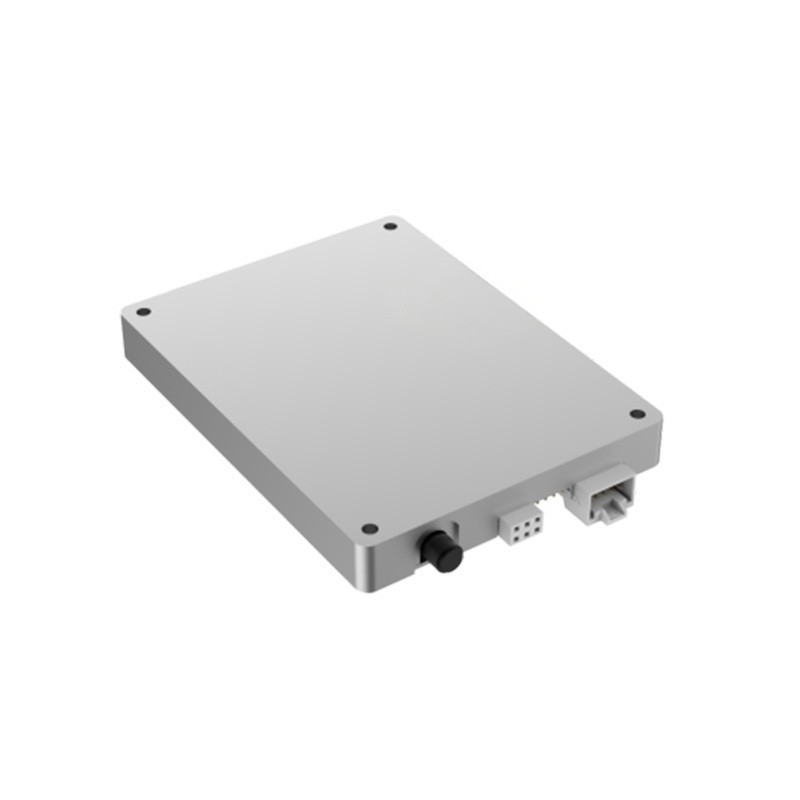

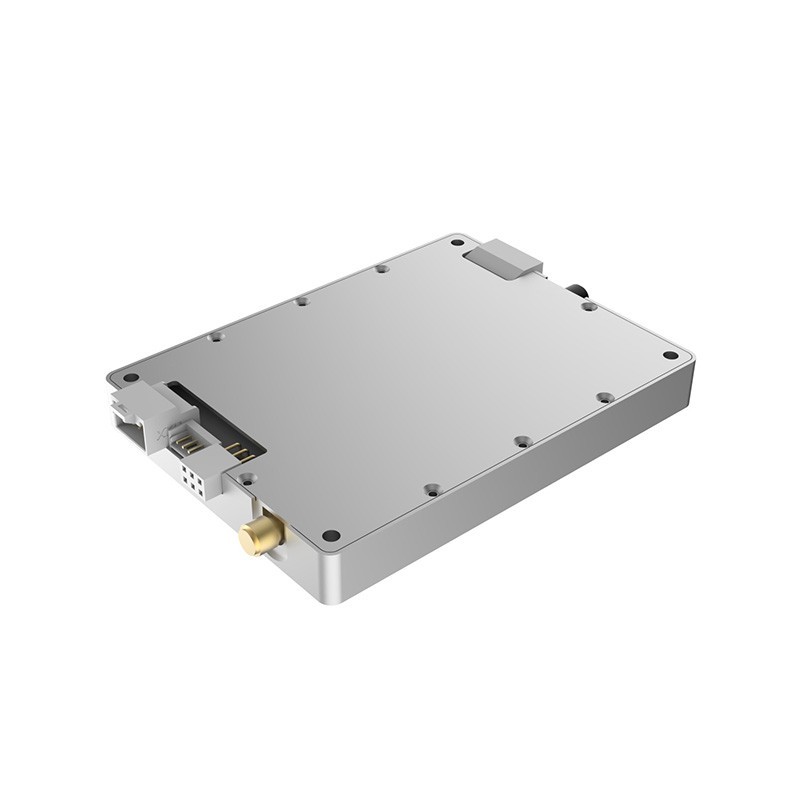

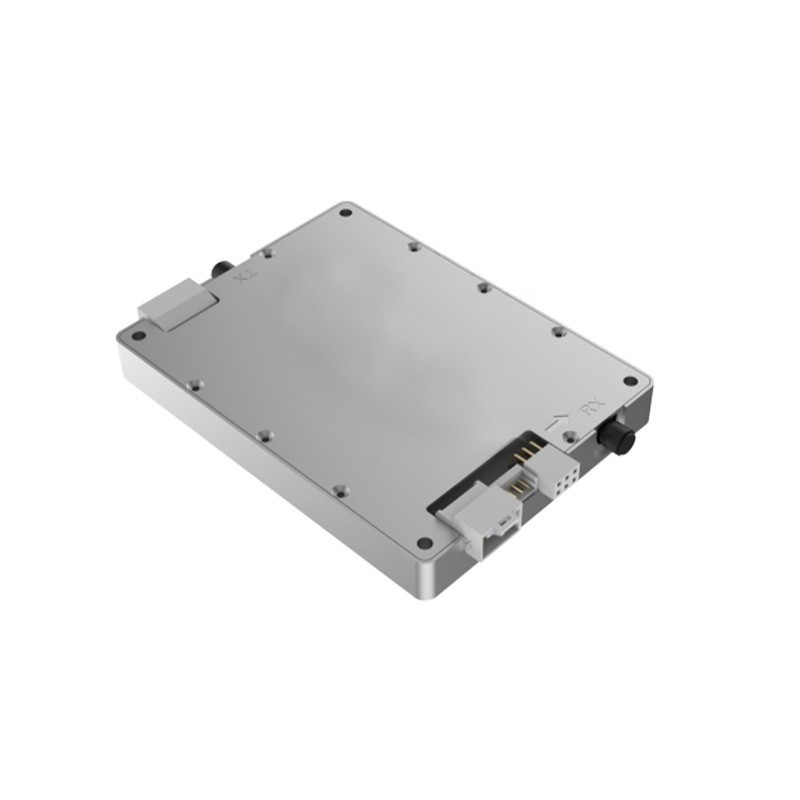

300MHz-6GHz FPV Detection and Signal Interception FPV Drone Simulation Transmission Highly Accurate Identification

No.SIG-D01

This All-in-One Drone Detection & Decoding Module is designed for counter-UAS systems and UAV surveillance applications, combining wideband RF detection, signal classification, direction finding, and protocol-level decoding in a compact hardware module.
The solution supports DJI, Autel, FPV drones, and various UAV communication technologies, providing early warning and identity-level intelligence for security and defense scenarios.

Specifications

Detection Distance:

≥1.5km (Good line of sight and electromagnetic environment)

Output signal bandwidth:

0.2MHz ~ 20 MHz.

Detect Response Time:

≤3s

Output signal power:

≥ 5dBm

Communication method:

RS232/TTL

Operating voltage range:

12~28V

GET A QUOTE

Product Introduction

The FPV detection and control integrated board is small in size, light in weight, and adopts a low-power design. The module extracts key signal features from the FPV analog image transmission signal through radio signal detection technology, and uses spectrum feature recognition technology to compare with the spectrum feature library to achieve accurate identification of FPV drones. The board is equipped with a power amplifier module to achieve accurate countermeasure with the FPV drone analog image transmission, causing the FPV glasses worn by the operator to lose the image screen, thereby achieving the effect of detecting and interfering with the FPV drones.

Main features:
1) It has the ability to quickly detect FPV drone simulated image transmission in the full frequency range of 300-6000MHz;

2) It can accurately strike FPV drone simulated image transmission by matching with power amplifier module.

Main functions:

It has the function of detecting and warning the downlink signal of the drone.
It has the function of interfering with the remote control, image transmission link and satellite navigation positioning of the drone to meet the needs of different scenarios (expulsion, forced landing, capture).
It has the function of accurately Signal interception with the simulated image transmission of the flying drone.
It has the function of automatically recording the detection data, interference signal switch and other information in the form of logs, and can be exported through the data line for analysis.

Product Specifications

Detection frequency	300MHz-6GHz: 300MHz ~ 650MHz； 650MHz ~ 1000MHz； 1000MHz ~ 1600MHz； 1600MHz ~ 2400MHz； 2400MHz ~ 3650MHz; 3650-6000MHz
Detection Distance	≥1.5km (Good line of sight and electromagnetic environment)
Output signal bandwidth	0.2MHz ~ 20 MHz.
Detect Response Time	≤3s
Output signal power	≥ 5dBm
Communication method	RS232/TTL;
Operating voltage range	12~28V
Detection Response Time	≤3s
Board power consumption	≤ 4w (detection power consumption: ≤ 3w);
Module weight	≤150g
