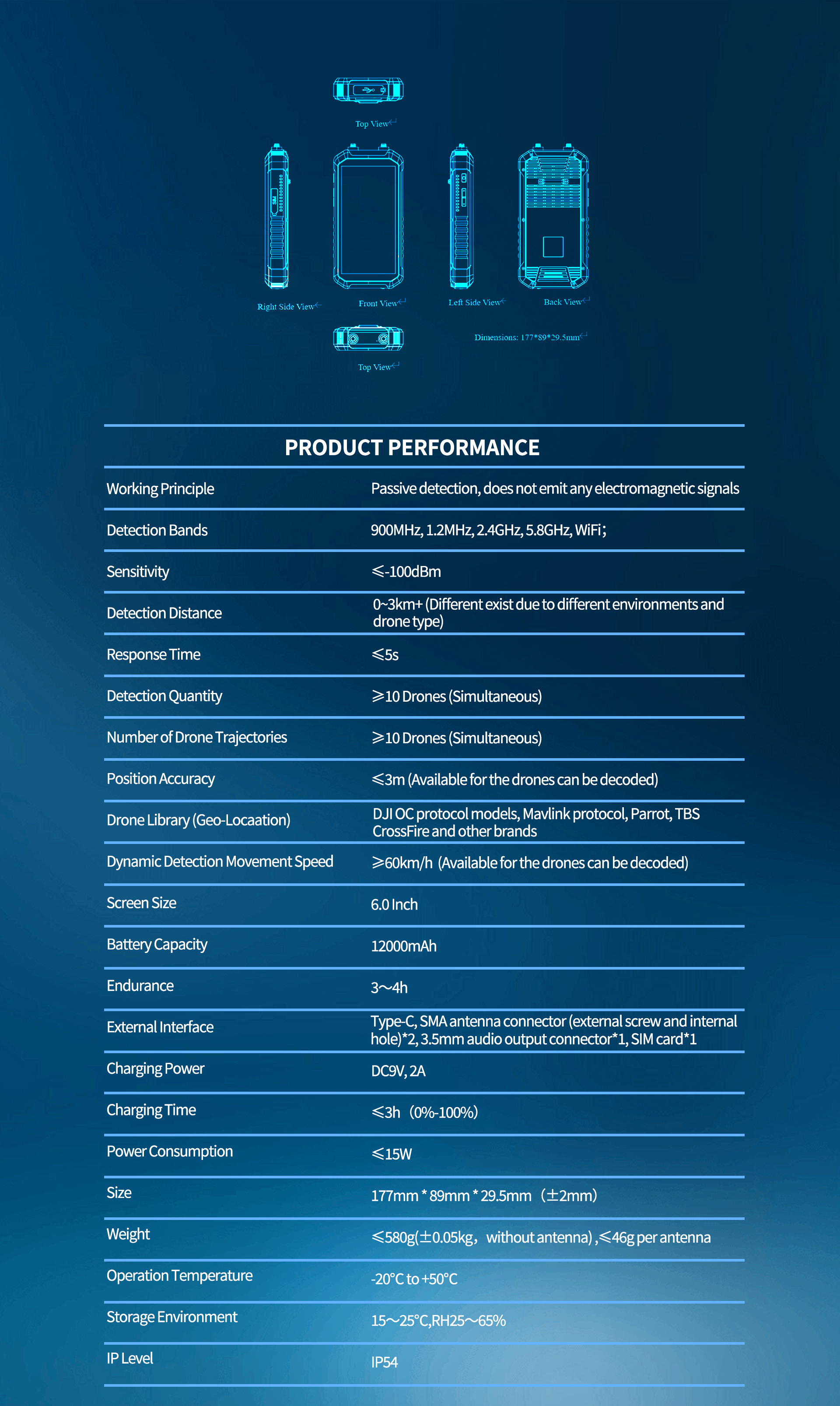

Working Principle
|
Passive detection, does not emit any electromagnetic signals
|
|

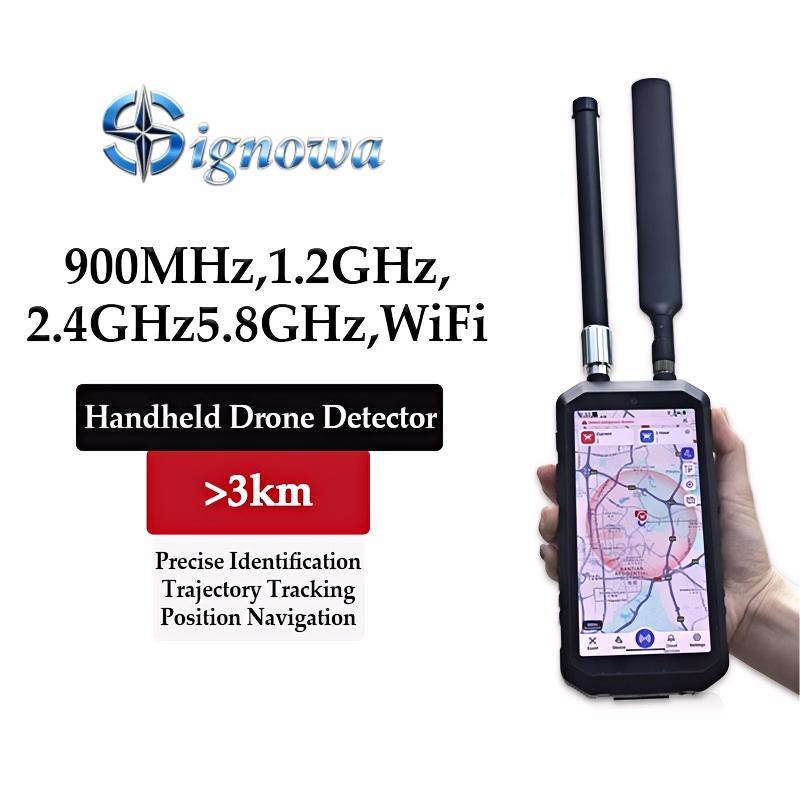

Detection Bands
|
900MHz, 1.4MHz, 2.4GHz, 5.8GHz, WiFi；
|
|
Sensitivity
|
-95dBm
|
|
Detection Distance
|
0~3km+ (Different exist due to different environments and drone type)
|
|
Response Time
|
≤5s
|
|
Detection Quantity
|
≥12 Drones (Simultaneous)
|
|
Number of Drone Trajectories
|
≥11 Drones (Simultaneous)
|
|
Position Accuracy
|
≤3m (Available for the drones can be decoded)
|
|
Drone Library (Geo-Locaation)
|
DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands
|
|
Dynamic Detection Movement Speed
|
≥60km/h (Available for the drones can be decoded)
|
|

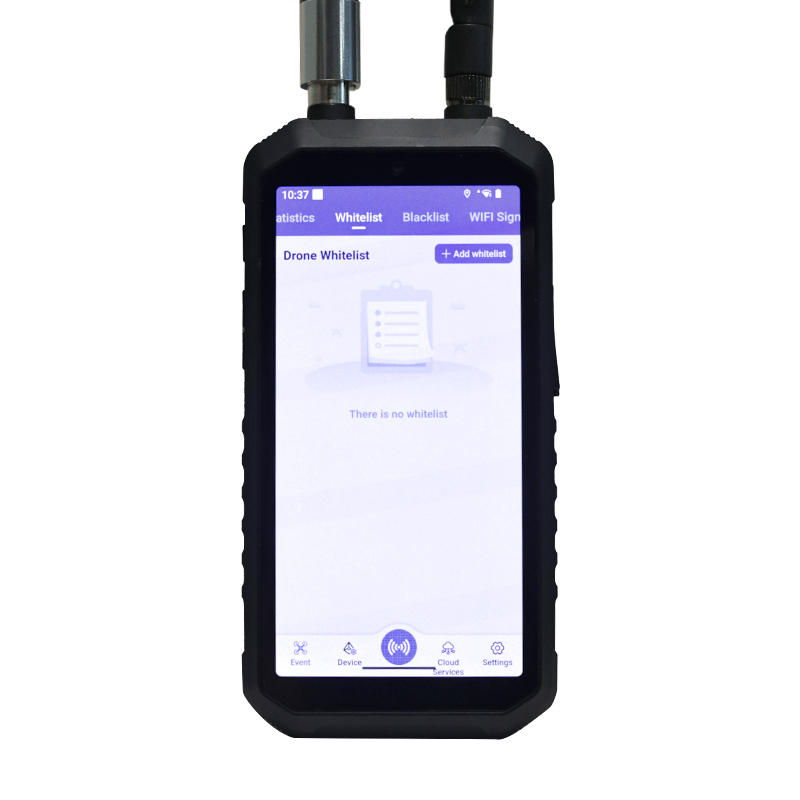

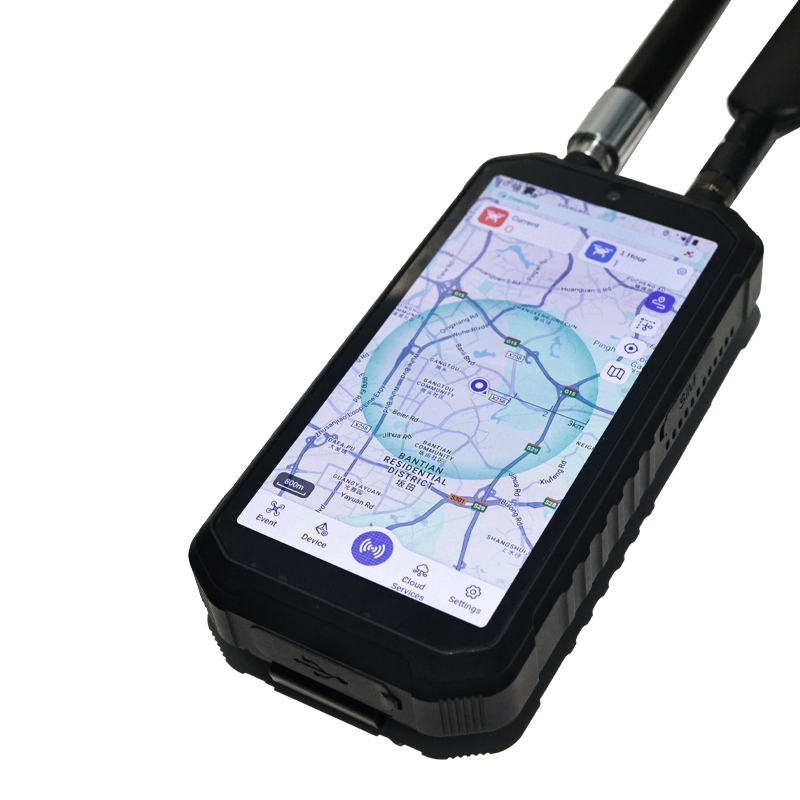

Screen Size
|
6.0 Inch
|
|
Battery Capacity
|
12000mAh
|
|
Endurance
|
3～4h
|
|
External Interface
|
Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1
|
|
Charging Power
|
DC9V, 2A
|
|
Charging Time
|
≤3h（0%-100%）
|
|
Power Consumption
|
≤15W
|
|

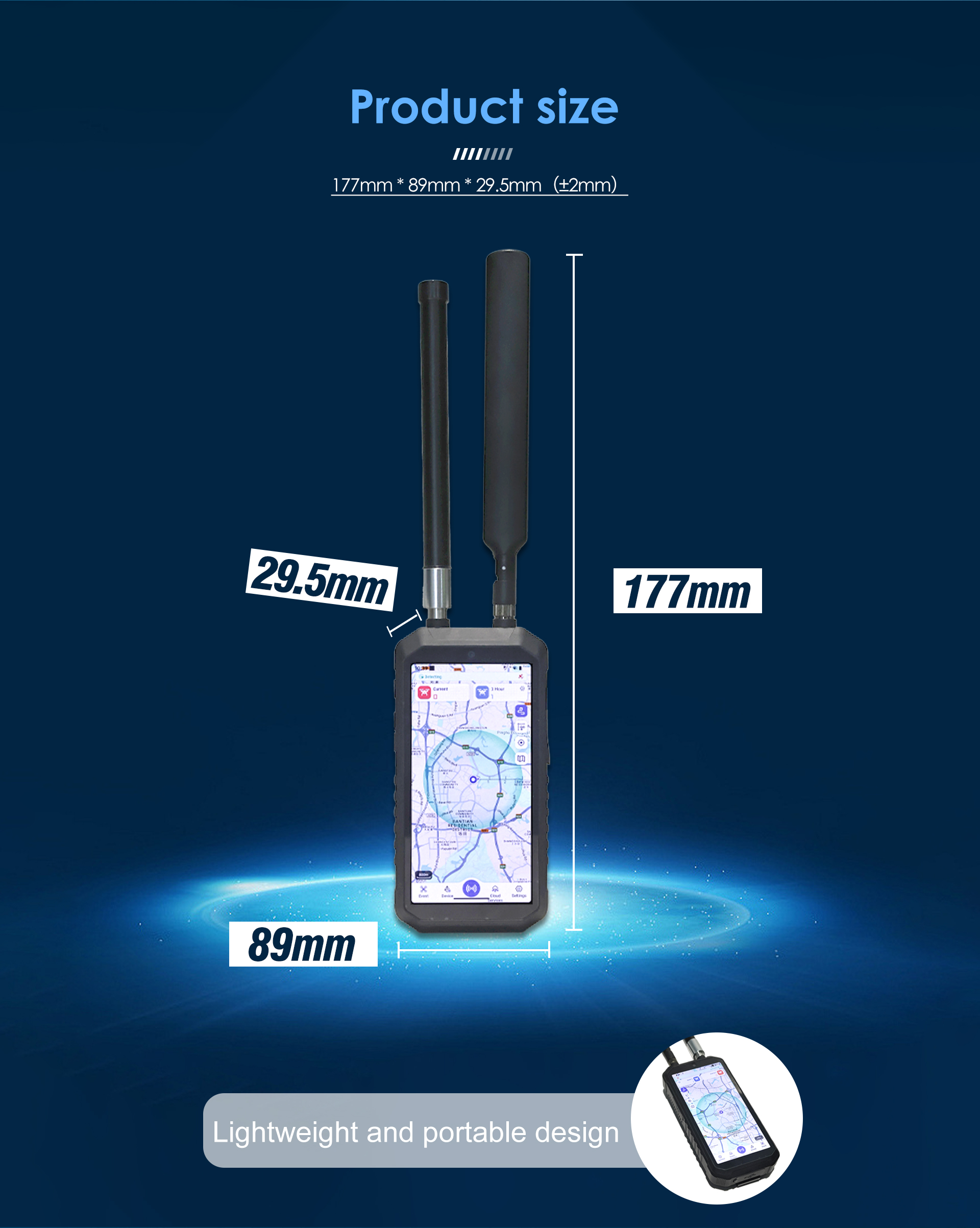

Size
|
177mm * 89mm * 29.5mm（±2mm）
|
|
Weight
|
≤580g(±0.05kg，without antenna) ≤46g per antenna
|
|
Operation Temperature
|
-20℃ to +50℃
|
|
Storage Environment
|
15～25℃ RH25～65%
|
|
IP Level
|
IP54
|
