Item
|
Spec.
|
Remarks
|
|
|
Frequency Range
|
1560-1620 MHz
|
Bandwidth Range±10MHz
|
|
|
Working Voltage
|
28V
|
24-30V
|
|
|
Working current
|
10-14A
|
output 150W
|
|
|
Analog sweeping speed
|
Customized 50-300KHz
Standard 120 KHz |
8μ/s
|
|
|
Output Power (Max)
|
51.8±1 dBm
|
150W
|
|
|
Gain (Max)
|
51.8±1 dB
|
||
|
Ripple in Band
|
≤ 3 dB
|
Peak
|
|
|
Bandwidth adjustment
|
Yes
|
By screw
|
|
|
Center adjustment
|
Yes
|
By screw
|
|
|
Enable control
|
Customize
|
24-28V
|
|
|
Input power (Max)
|
≤ +10dBm
|
Optional (If signal source from Subscriber)
|
|
|
Input Signal Source
|
Built-in high-speed noise modulation signal source
|
Optional
(customize VCO, DDS or SDR) |
|
|
Output VSWR
|
≤1.5
|
Inside circulator, VSWR protect
|
|
|
High Low
Temperature test |
Working Temperature
|
-20～+65℃
|
Working properly
|
|
Gain Stability
|
±1 dB
|
at
-20℃～+65℃ |
|
|
Power stability
|
±1 dB
|
at
-20℃～+65℃ |
|
|

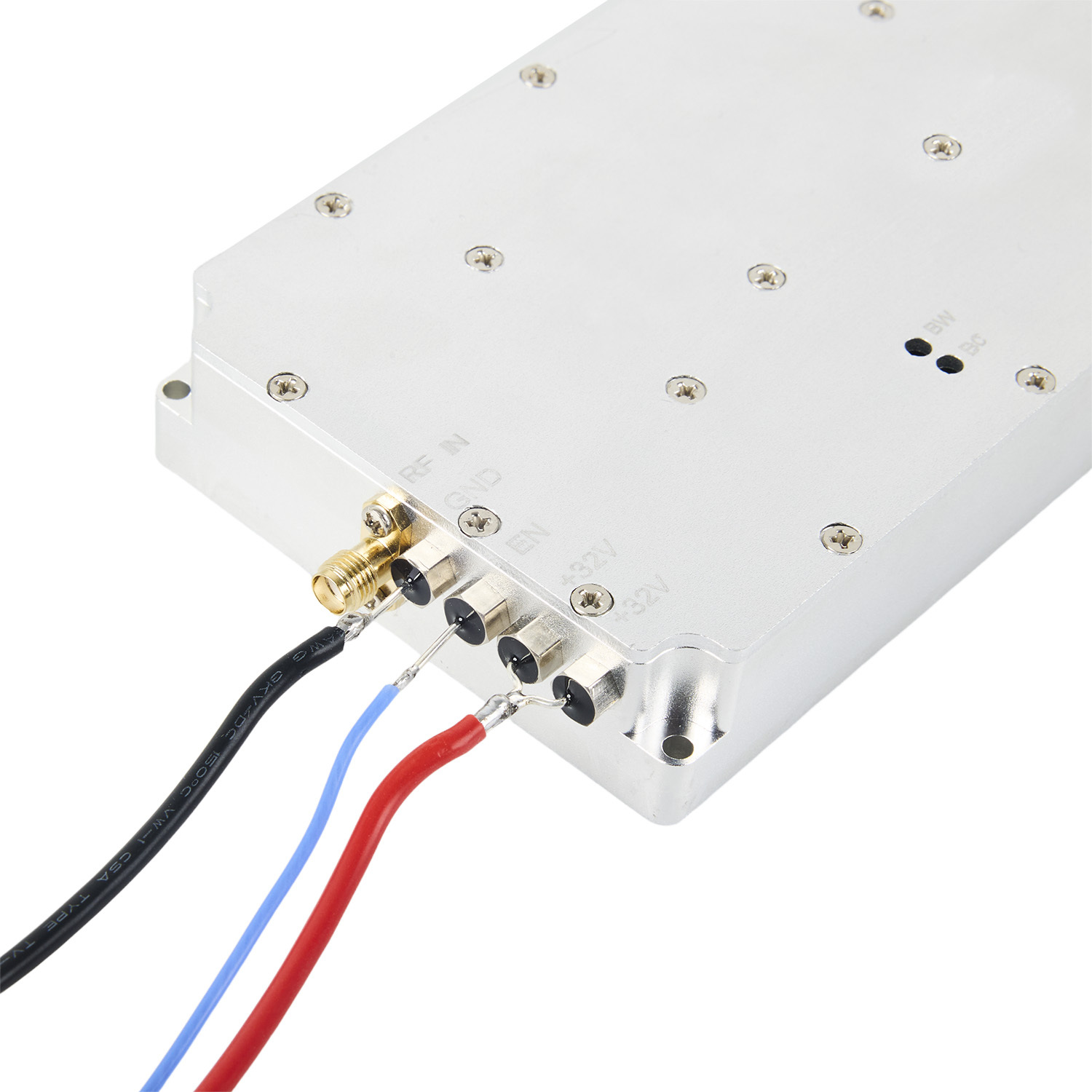

Power supply Port
|
Positive and negative lines
|
24-28V; GND;
(optional: Enable control wire) |
|
|
Shell Material
|
Aluminum with natural color oxide sand blasting
|
||
|
Vibration Need
|
Meet the load need of moving vehicle
|
||
|
RF output connector
|
SMA-Female
|
||
|
LED indicator light
|
Power ON/OFF
|
||
|
Dimension
|
150*80*22 mm
|
||
|
Installation Dimension
|
114.3*74*22 mm
|
||
|
Screw Size
|
M2.5
|
||
|
Weight
|
8000g
|
||
