Functional Positioning for Security OperatorsThis counter-drone system is engineered to meet the dynamic operational demands of security personnel and defense units requiring rapid aerial threat response. As a solution provided by a reputable drone defense equipment supplier, its backpack configuration ensures portability and immediate field deployment. The system caters to users who prioritize ease of operation combined with effective disruption of unauthorized UAV activity. Equipped with user-friendly controls and versatile antenna arrangements, its design adapts seamlessly to various scenarios requiring swift neutralization of drones using a portable drone jammer platform. This positions the device as a critical asset for security forces seeking responsive, on-the-go drone countermeasures.Technical Specifications and System CapabilitiesThe system employs multi-band jamming technology delivering an average output power of 50W/47 dBm and channel power of 20 dBm per 30 kHz segment, ensuring effective signal disruption across a broad frequency range. It incorporates dual antenna modes: an external omnidirectional antenna for general coverage and a handheld directional antenna for targeted interference. Powered by a 20 Ah removable battery and featuring advanced heat dissipation via an aluminum heat sink and high-efficiency fan, the unit maintains stable operation for extended missions. With a remote control range of up to 1 km and counter distances exceeding 150 m for FPV drones and 300 m for platforms like DJI, this anti drone jammer system delivers measurable performance tailored for complex operational requirements.Industry Applications and Tactical ValueDesigned to protect critical assets under diverse security environments, this portable drone jammer excels in securing perimeters, large events, and sensitive infrastructure. Its rapid deployment capability and modular frequency customization make it suitable for airport security, convoy protection, and emergency response drills. As a solution from a drone defense equipment supplier, it integrates readily with existing security protocols, ensuring operational continuity and regulatory compliance. By enabling precise, immediate countermeasures against unauthorized UAVs, it enhances risk mitigation efforts and supports mission-critical activities where aerial threats must be neutralized with minimal collateral impact.Product AdvantagesStructural and Design Innovation for Operational EffectivenessThis backpack drone suppressor system exemplifies modular design principles advantageous for users requiring mobility and rapid deployment. The inclusion of a removable battery simplifies maintenance and extends operational readiness. Its single-channel switch control and dual antenna configurations — external omnidirectional and handheld directional — provide tactical flexibility for varying mission parameters. The system’s robust heat dissipation mechanism, featuring an aluminum heat sink and high-efficiency fan, ensures consistent thermal management, supporting prolonged use without performance degradation. These structural attributes collectively highlight the system’s engineering excellence advocated by a leading portable drone jammer manufacturer.Performance Reliability and User-Centric FeaturesFrom a performance perspective, the system balances high output power with operational portability, facilitating effective drone neutralization across multiple frequency bands. The intuitive control interface reduces the training burden for security operators, promoting rapid intervention capabilities. The real-time power display enables efficient battery monitoring, which is critical in operational planning and mission endurance. This anti drone jammer solution fosters enhanced situational awareness and streamlined workflow integration, delivering significant value to security enterprises requiring dependable, user-friendly counter-drone technologies in challenging environments.
I. Product Operations
1) Check whether the appearance of the equipment is intact and confirm that the accessories are complete.
2) Tighten the antenna to the device to ensure a stable connection.（Must connect antenna correctly first）
3) Connect the control handle to the host.
4) Check whether the battery is sufficient.
5) Press the function key to start the device and it will start working.
6) Hold the handle and aim in the direction where you need to counter the drone.
7) Wait for 30 seconds, the device will take effect to drive away or make an emergency landing of the drone.
8) When the countermeasures are completed, press the function key to turn off the device.
II. Product Features

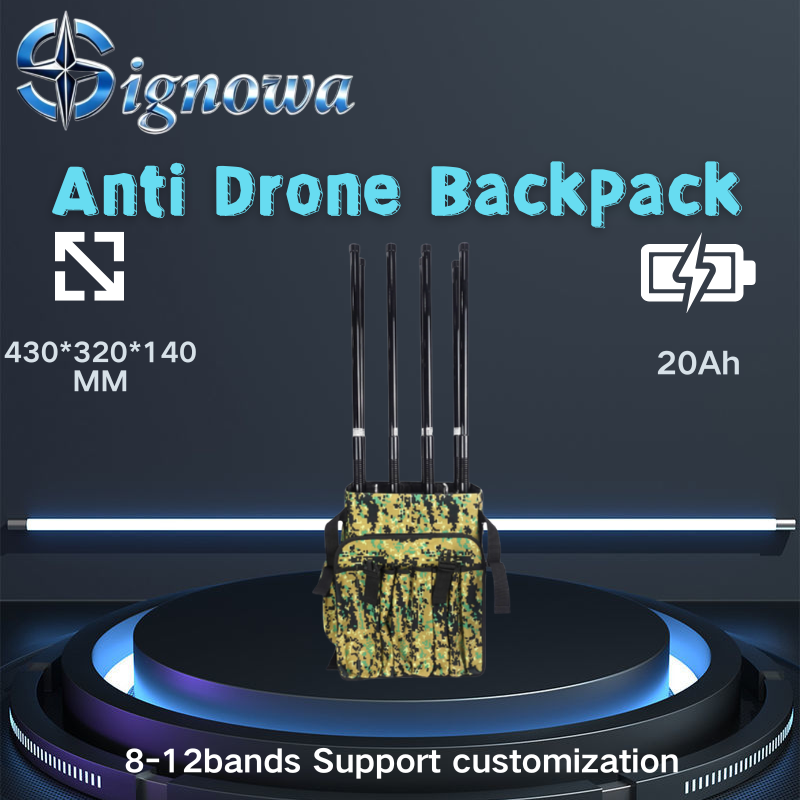

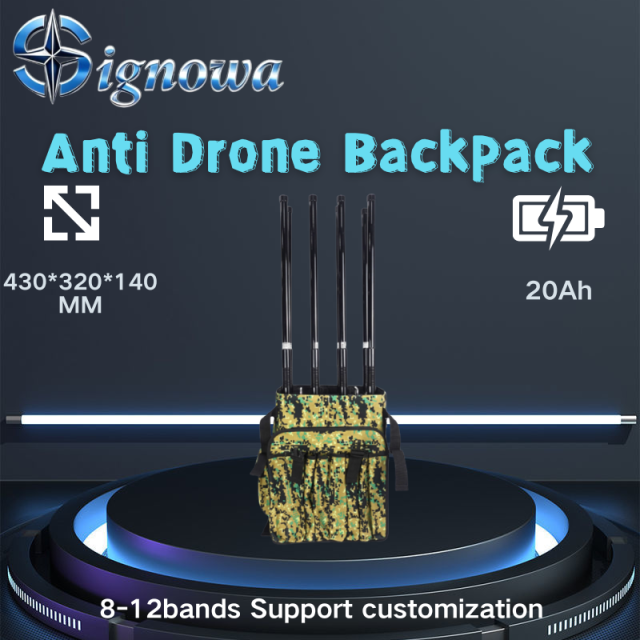

Backpack design: Easy to carry, elegant appearance, can be customized according to customer needs.
Removable battery: Designed for easy removal, replacement and transportation, ensuring continuous and stable operation of the device.
Single-channel switch control: More free operation to meet the needs of different usage scenarios.
Multiple antenna modes: Equipped with two antenna modes: external omnidirectional antenna and handheld directional antenna, to meet a variety of usage needs.
Highly optimized antenna: Better countermeasure distance, ensuring effective drive away or forced landing of the drone within the field of view.
Excellent heat dissipation performance: Aluminum heat sink and high-efficiency fan ensure that the device works stably for a long time.
Power display: Easily know the power level to ensure that the device does not lose power at critical moments.
III.Parameter
|
Output
|
Work Frequency
|
Average Output Power
|
Signal Output Power
|
Voltage/Current
|
Antenna
|
|
650M
|
600-700M
|
50W/47dbm
|
20dbm/30Khz(min)
|
28V/3.1A
|
Omnidirectional + directional
|
|
800M
|
700-825Mhz
|
50W/47dbm
|
20dbm/30Khz(min)
|
28V/3.1A
|
Omnidirectional + directional
|
|
900M
|
825-950Mhz
|
50W/47dbm
|
20dbm/30Khz(min)
|
28V/3.1A
|
Omnidirectional + directional
|
|
1.1G
|
950-1080Mhz
|
50W/47dbm
|
20dbm/30Khz(min)
|
28V/3.1A
|
Omnidirectional + directional
|
|
1.2G
|
1180-1280Mhz
|
50W/47dbm
|
20dbm/30Khz(min)
|
28V/3.1A
|
Omnidirectional + directional
|
|
1.5G
|
1550-1620Mhz
|
50W/47dbm
|
20dbm/30Khz(min)
|
28V/3.1A
|
Omnidirectional + directional
|
|
2.4G
|
2400-2500Mhz
|
50W/47dbm
|
20dbm/30Khz(min)
|
28V/3.4A
|
Omnidirectional + directional
|
|
4.9G
|
24800-4960Mhz
|
50W/47dbm
|
20dbm/30Khz(min)
|
28V/3.7A
|
Omnidirectional + directional
|
|
5.2G
|
5135-5350Mhz
|
50W/47dbm
|
20dbm/30Khz(min)
|
28V/3.7A
|
Omnidirectional + directional
|
|
5.8G
|
5725-5850Mhz
|
50W/47dbm
|
20dbm/30Khz(min)
|
28V/3.7A
|
Omnidirectional + directional
|
|
Battery Capacity
|
20Ah
|
|
Host Weight
|
16kgs
|
|
Total Weight
|
25kgs
|
|
Host Size
|
430*320*140 MM
|
Working Frequency: Covers multiple frequency bands and can be customized according to customer needs.
Average Output Power: 50W/47dbm, ensuring sufficient countermeasures effect.
Channel Output Power: 20dbm/30KHz (min) to ensure the stability of signal transmission.
Battery Capacity: 20AH, you can choose an additional battery to meet the needs of long-term use.
Host Weight: 16kg, with packaging weight 25kg, easy to carry and transport.
Counter distance: Remote control distance 1km, counter distance is greater than 150 meters for FPV Remote control distance 1km,
counter distance is greater than 300 meters for DJI/Autel
Working time:10 bands full open, working 25 minutes, 10-35℃
Use ScenariosCounter-Drone Security at Critical Infrastructure FacilitiesIn critical infrastructure security environments, such as power plants or government facilities, unauthorized drone incursions pose significant risks to operational integrity. The backpack drone suppressor system acts as a frontline defense tool, providing rapid identification and jamming capabilities to prevent surveillance or sabotage attempts. Its multi-band coverage and extended counter distances ensure comprehensive disruption of drone communications while maintaining compliance with regulatory constraints. Integration with existing security systems and protocols facilitates coordinated responses, where this portable drone jammer serves as a tactical extension of perimeter security teams, enhancing overall threat mitigation effectiveness.Mobile Drone Suppression during Large-Scale Public EventsDuring large-scale events like stadium gatherings or public demonstrations, drone intrusions can represent privacy violations or security hazards. This handheld drone jammer supports security units through rapid mobility and adaptable jamming modes, allowing operators to address drone threats in real time. Its ergonomic design and lightweight profile enable discreet operation while rendering unauthorized UAVs ineffective across relevant frequency bands. The system’s compatibility with remote-control operations and adaptability to crowded, dynamic environments make it an essential component of event security workflows, supporting compliance with local regulations and safeguarding attendee safety through effective counter-drone measures.FAQ What frequency bands does your portable drone jammer support and can it be customized?Our portable drone jammer supports multiple frequency bands covering 70MHz to 6000MHz. We offer customizable options to tailor the working frequency bands according to your specific security needs, ensuring optimal performance for your environment.How long does the battery last during continuous operation for drone defense equipment?Our drone defense equipment features a removable 20 Ah battery, which supports about 25 minutes of continuous operation when all 10 bands are active. This balance of endurance and portability allows rapid deployment during critical security incidents.Is the 8-12 bands drone suppressor system easy to operate on the field?Yes, the system is designed with user-friendliness in mind. It uses a single-channel switch control and allows quick battery replacement in the field. The backpack design and dual antenna modes enhance portability and adaptability for mobile security teams.Do you provide support for installation and maintenance of your handheld drone jammer systems?We offer professional technical support and high-quality aftersales services for our handheld drone jammer and other products. Our team assists with deployment guidance, maintenance procedures, and ensures your system operates reliably in diverse security settings.
